Equipment:

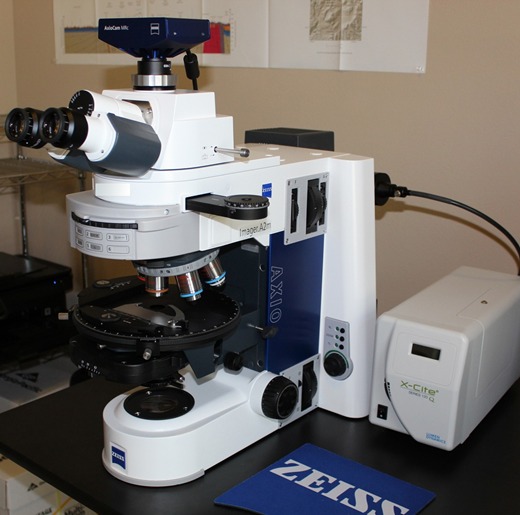

The Carl Zeiss Axio Imager.A2m is the microscope of choice for McLin Petrographics.


This state-of-the-art petrographic microscope is equipped with both transmitted and reflected plane-polarized light, as well as epifluorescent capabilities through the X-Cite high intensity mercury vapor short arc lighting system and various UV light filters.  Selected high efficiency filter sets include the Fs01HE (excitation of 358nm and emission at 463nm) and the Fs45HE (excitation of 572nm and emission at 590 nm).


The range of magnification objectives include EC-Epiplan-NEOFLUAR 2.5x, 5x, 10x, 20x, and 50x.


Clients familiar with the Axio Vision software can utilize the .zvi files directly, or if you prefer, high resolution .tiff files.
